OD Mounted Flange Facing Machines

TAF330

Heavy duty, robust designed OD Mount flange facer with a preloaded 4-point contact bearing for machining of flanges with high tolerances and accuracies.


Mounting Diameter: 60 mm – 350 mm

Boring Diameter: 0 mm – 330 mm

Drive Options: Pneumatic or Hydraulic

TAF630

Our TAF 630 enables a wide variety of processing. Our tool slide system can be used for many applications whether it be for flat face flanges, sealing surfaces, valve flanges, shoulders and/or grooves. Our TAF models are suitable for all of these applications.

Mounting Diameter: 180 mm – 630 mm

Boring Diameter: 0 mm – 630 mm

Drive Options: Pneumatic or Hydraulic

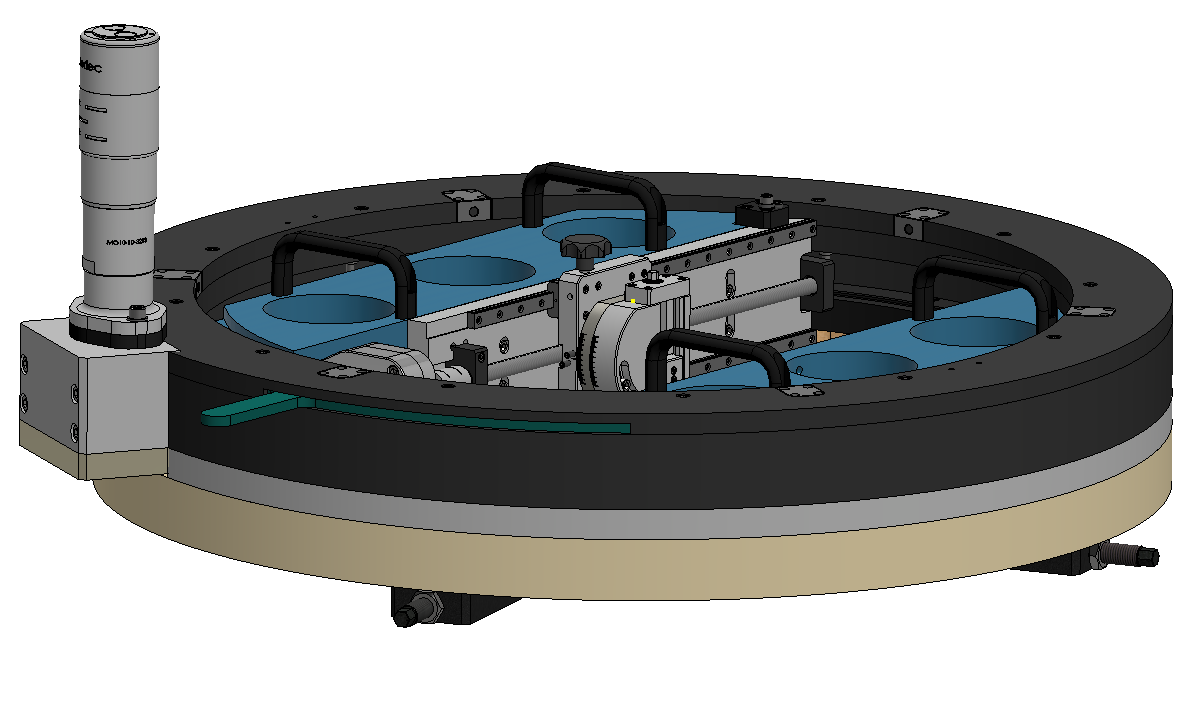

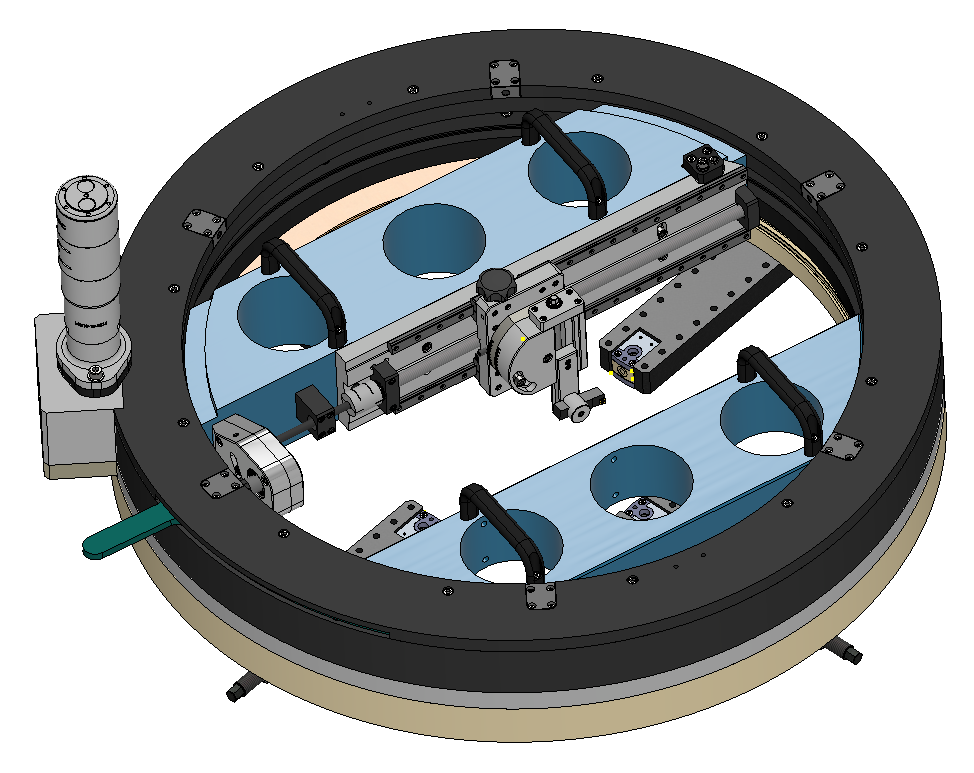

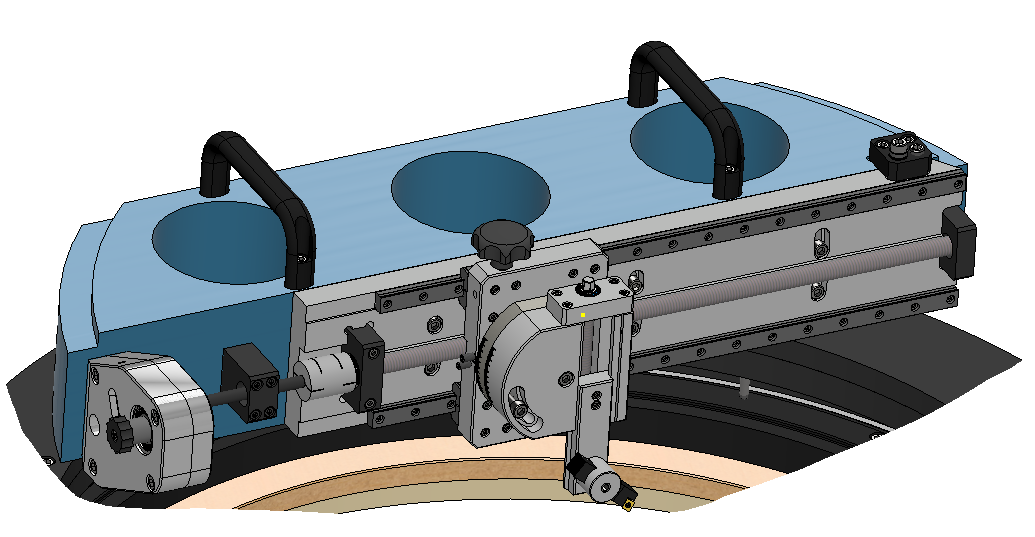

TAF940

All our OD mounted flange facing machines are designed with the highest accuracies achievable, all while taking into account the ergonomics and safety while operating the machine. The feed rate is adjusted from outside of the machine therefore allowing adjustment during operation.


Mounting Diameter: 500 mm – 940 mm

Boring Diameter: 0 mm – 940 mm

Drive Options: Pneumatic or Hydraulic

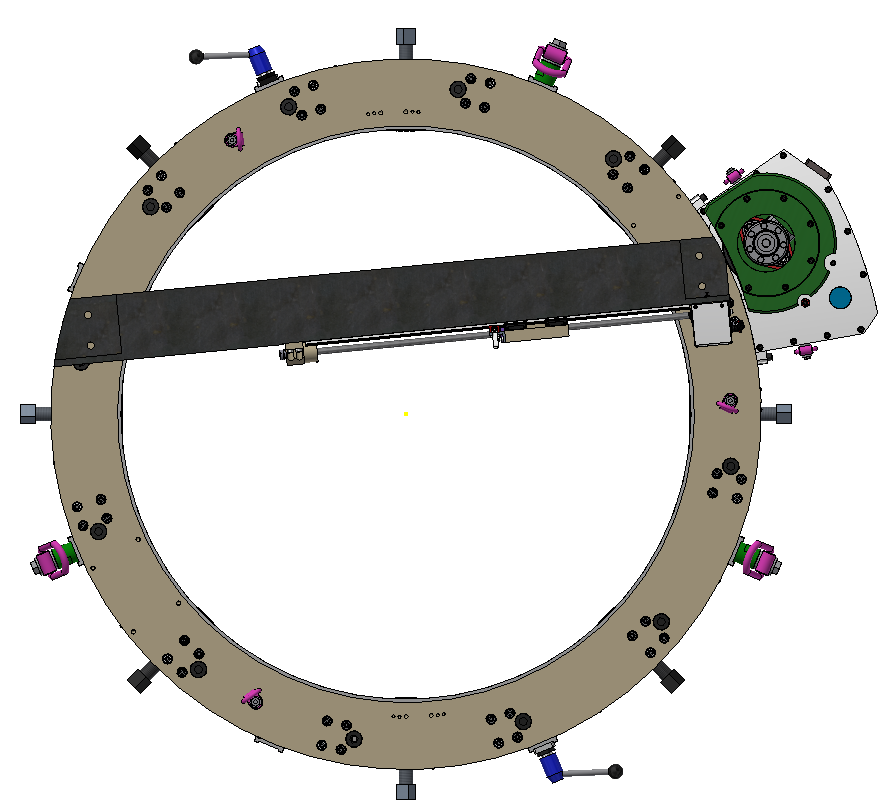

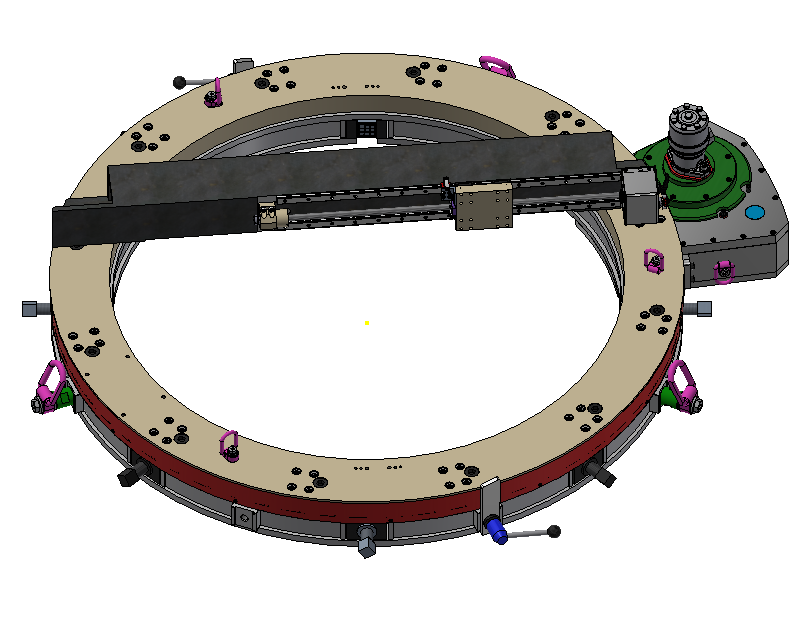

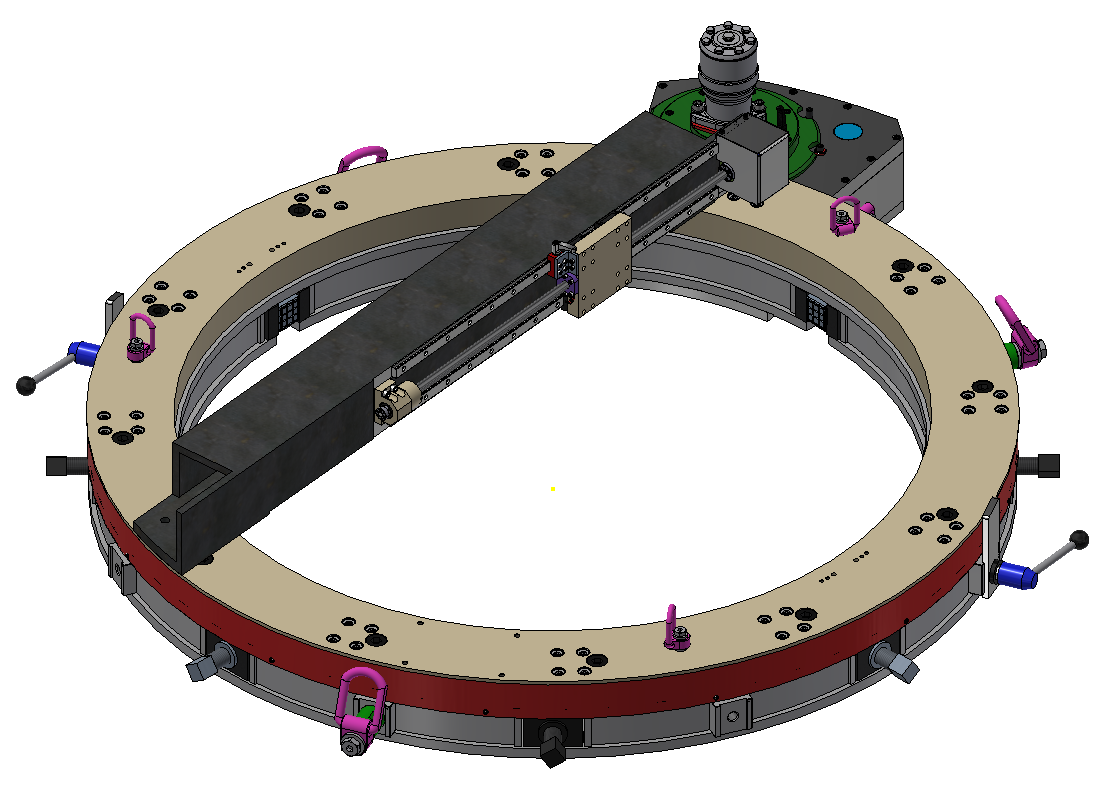

TAF1300

This high accuracy machine is built using the latest technology of radial- rail system, proving to be the best in its class with little to no play in the bearing arrangement. The added benefit: the turning arm is a completely welded and internally ribbed arrangement, which combines to be a 2-Axis milling machine.

Mounting Diameter: 760 mm – 1270 mm

Boring Diameter: 0 mm – 1270 mm

Drive Options: Pneumatic or Hydraulic

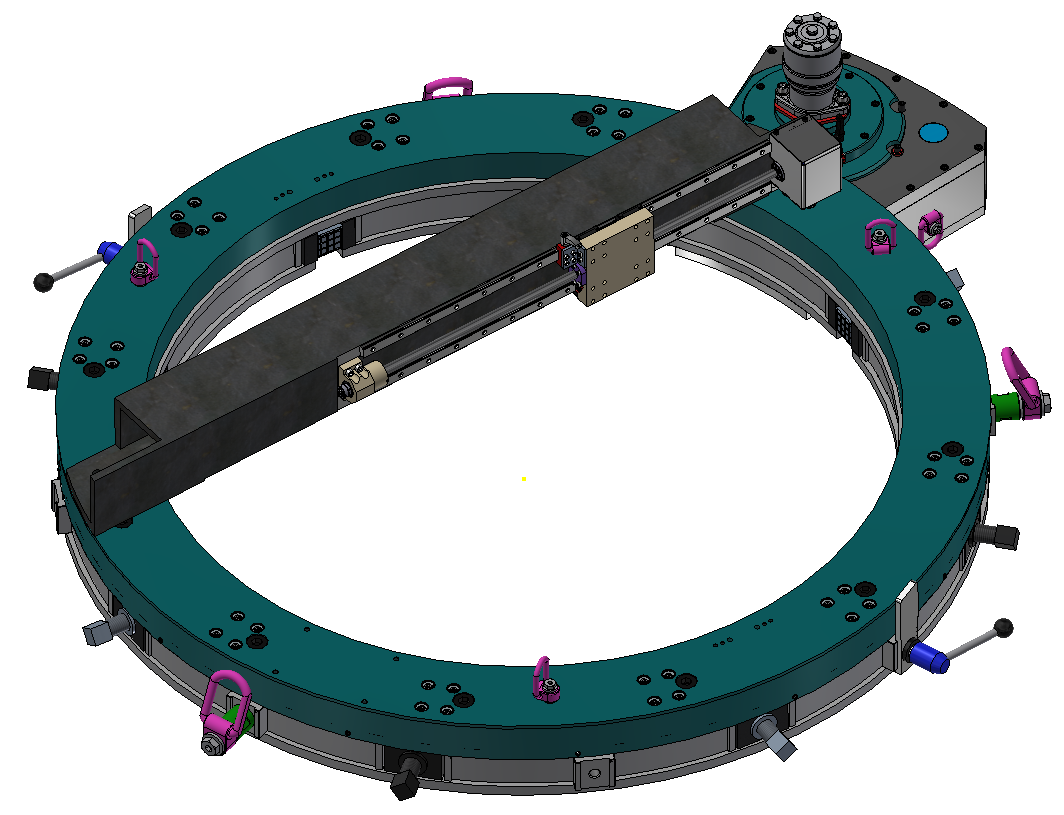

TAF1600

Precision construction with robust characteristics, this machine is built with integrated feed system that is infinity adjustable. Allowing for a safe, quick and ease of use.

Mounting Diameter: 1100 mm – 1530 mm

Boring Diameter: 0 mm – 1530 mm

Drive Options: Pneumatic or Hydraulic

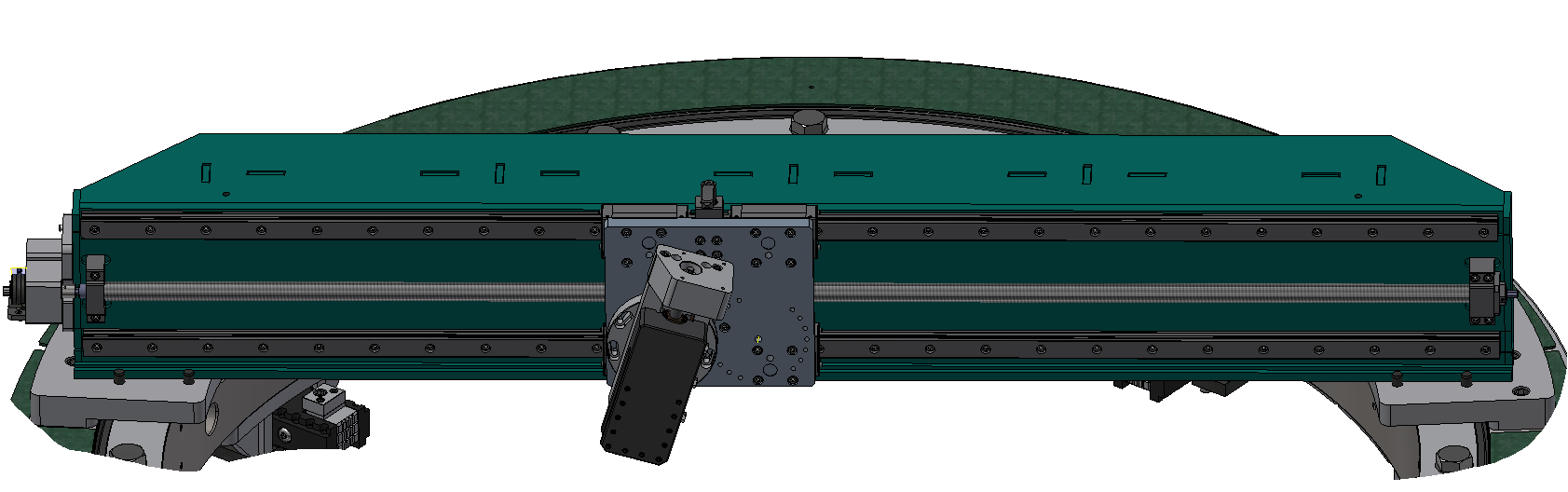

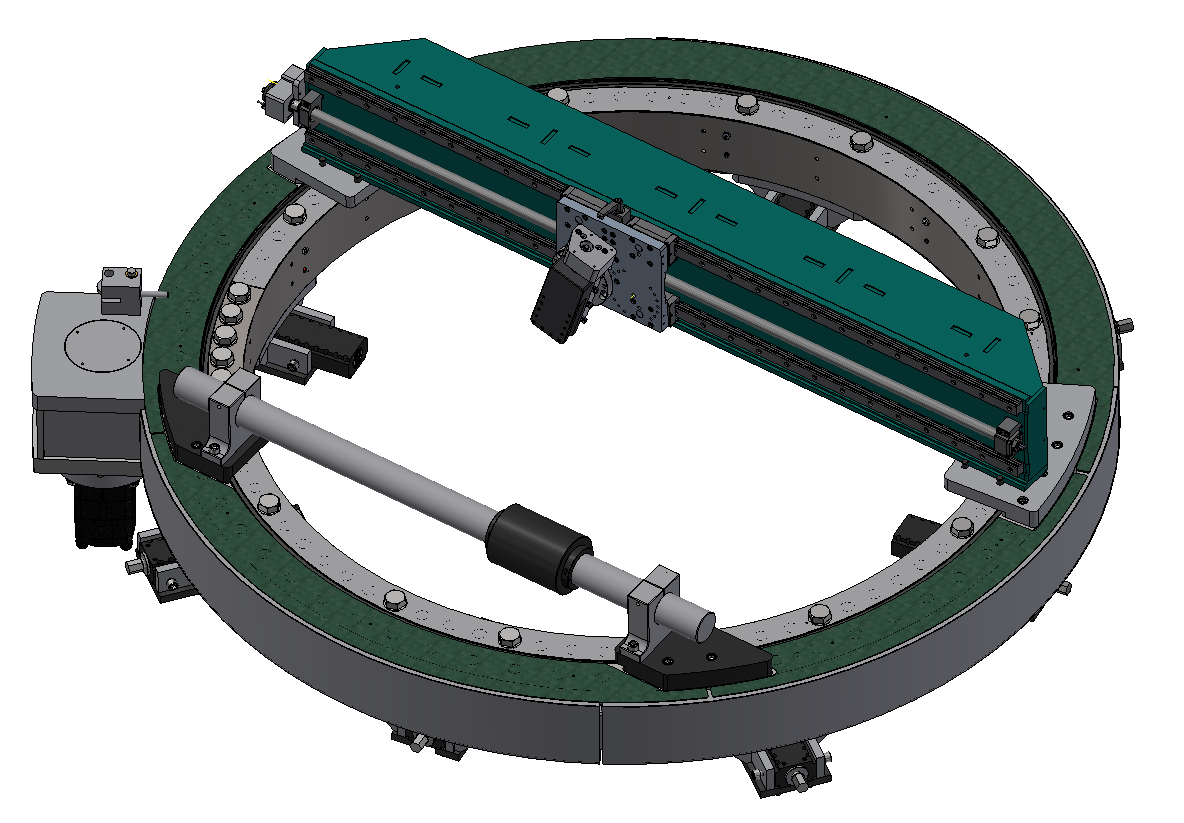

TAF1800

Externally mounted machine for facing, grooving and milling operations! This machine is perfect for those difficult applications that require a strong and quick material removal machine.

Mounting Diameter: 1250 mm – 1800 mm

Boring Diameter: 0 mm – 1800 mm

Drive Options: Pneumatic or Hydraulic

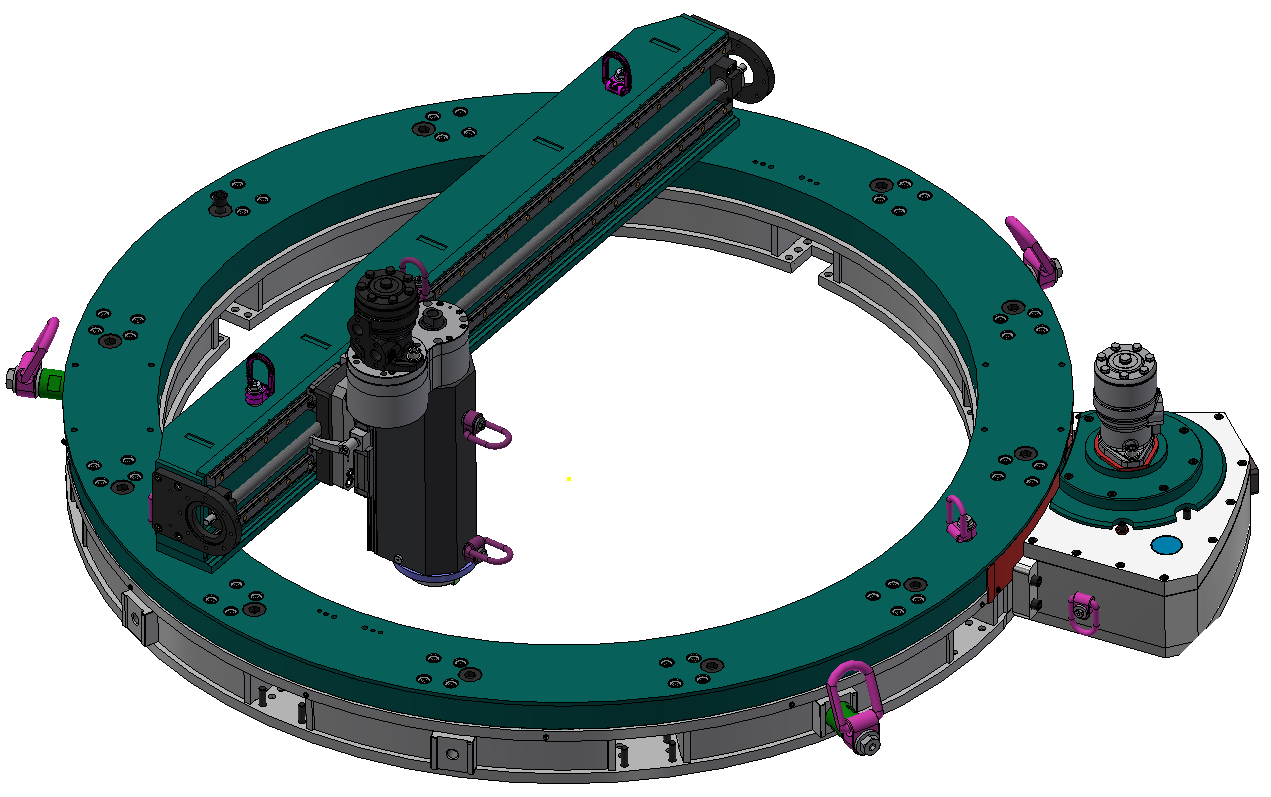

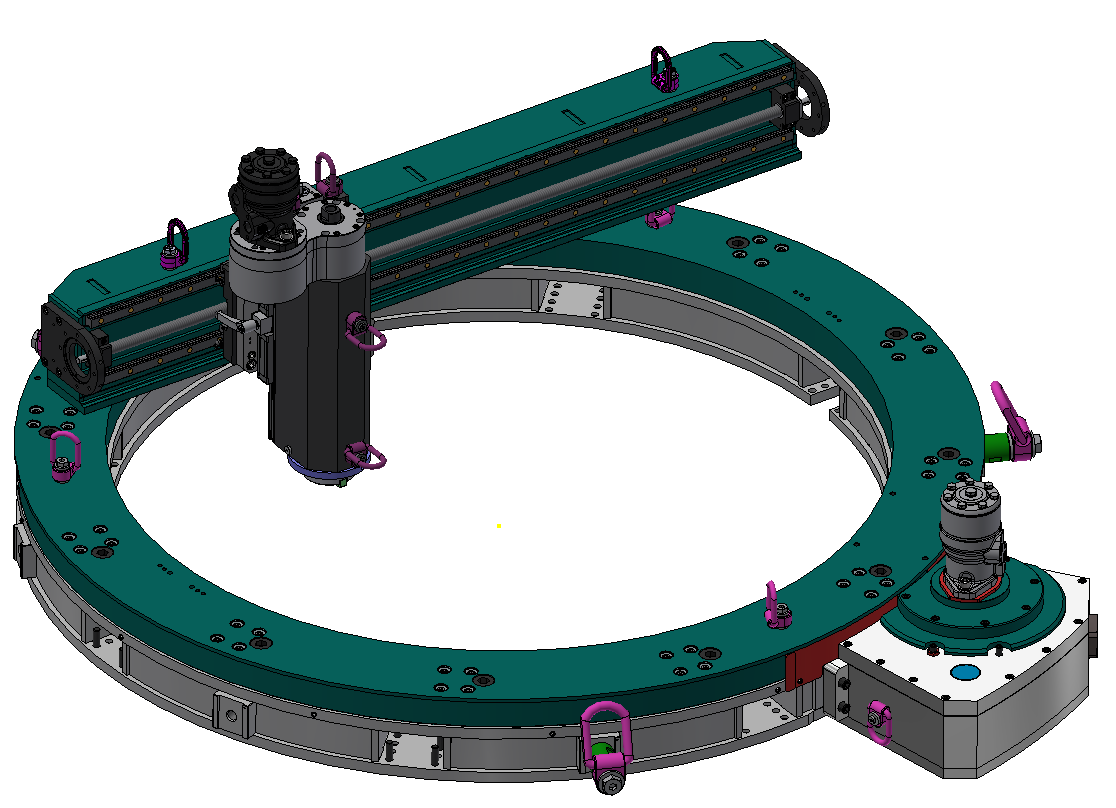

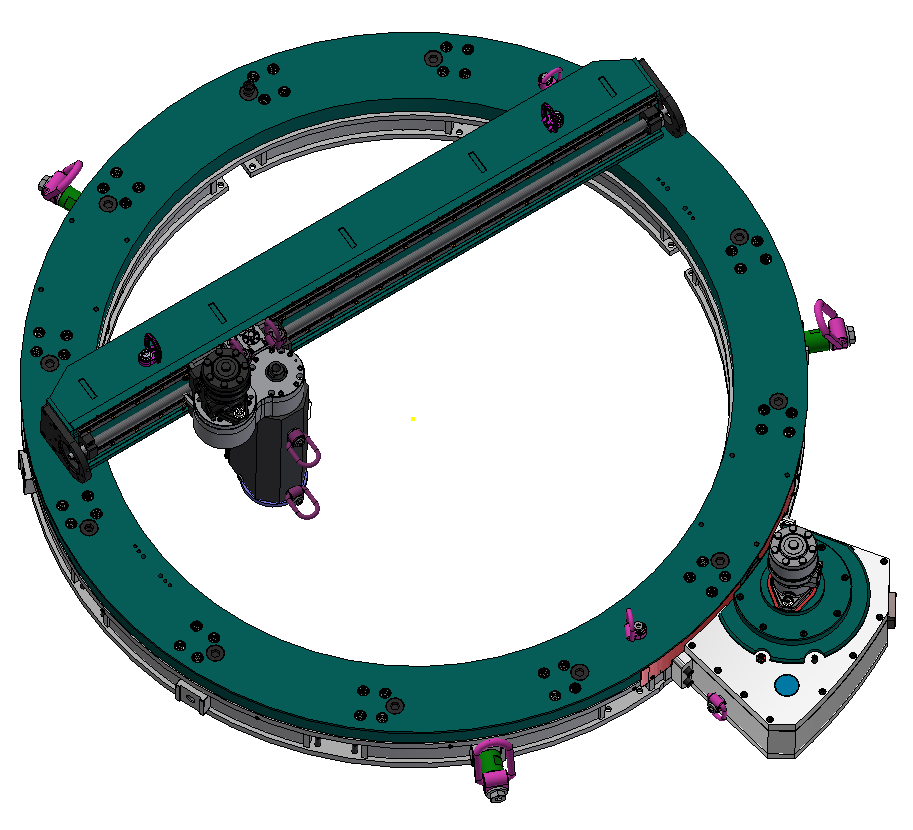

TAF2300

Combining a large diameter machine with accuracies that are required for the ever-demanding sectors in the world. This machine with the ability to be either OD or ID configured.


Mounting Diameter: 1750 mm – 2290 mm

Boring Diameter: 0 mm – 2290 mm

Drive Options: Pneumatic or Hydraulic

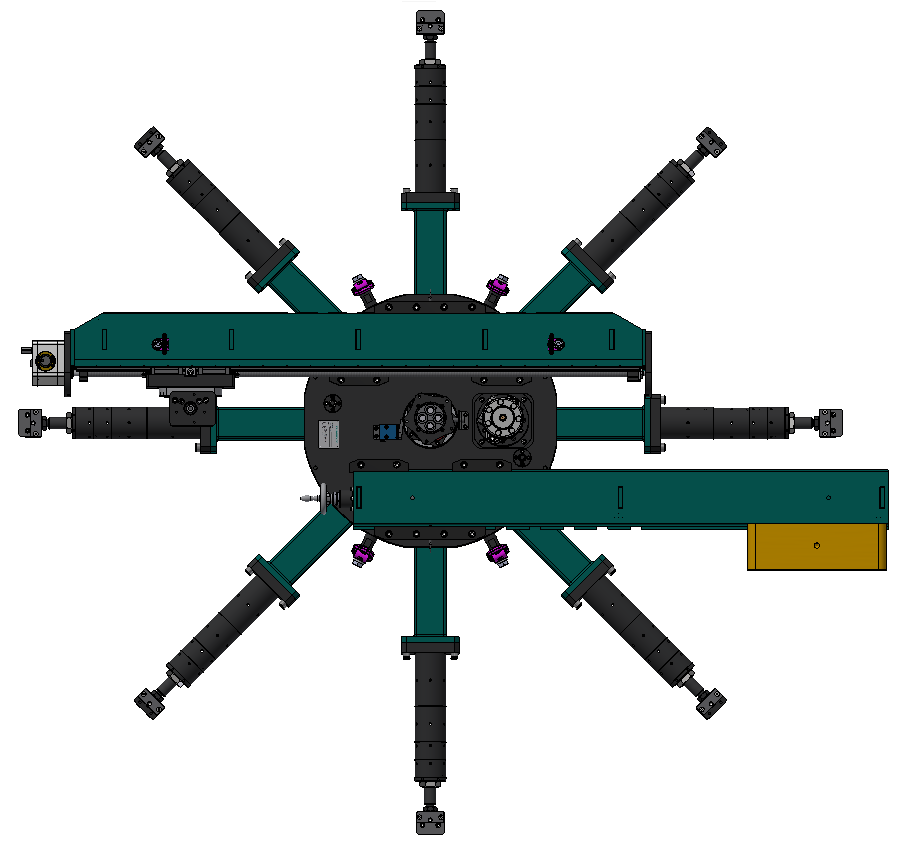

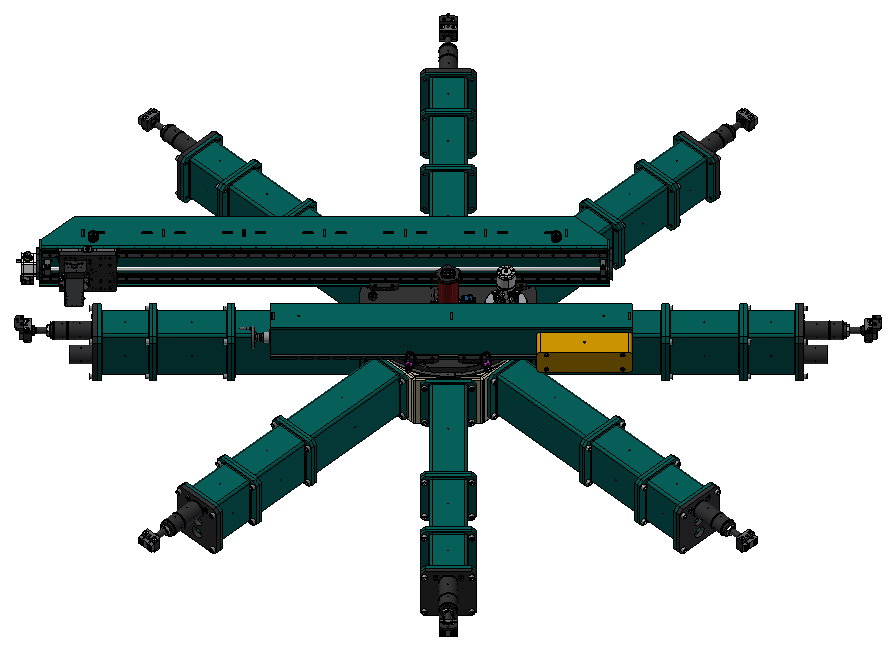

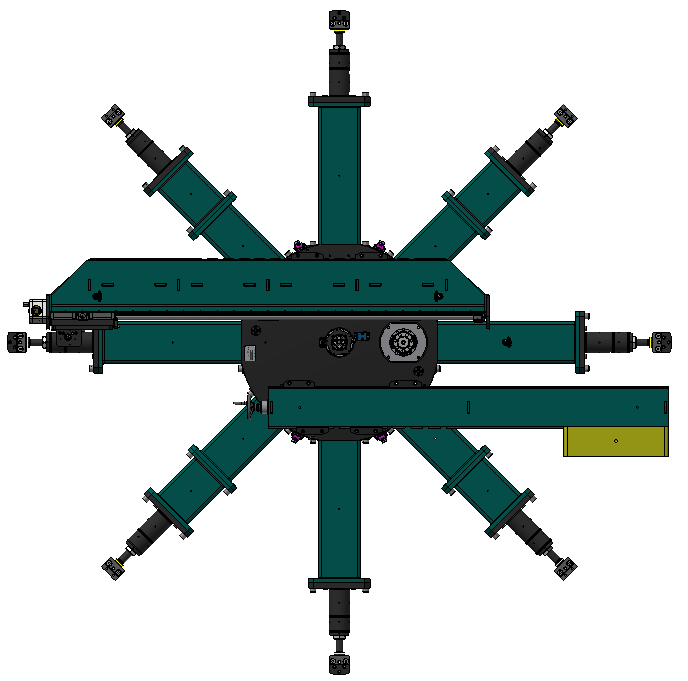

ID Mounted Flange Facing Machines

TFD1500

A universal machine that is designed to fit in small spaces allowing the operator to easily setup and operate. Can be configured in either ID, OD or both. This machine quickly repairs surfaces saving time and money.


Clamping Diameter: 295 mm – 1480 mm

Machining Diameter: 300 mm – 1500 mm

Drive Options: Pneumatic or Hydraulic

TFD2000

Robust and versatile this machine can perform both facing and milling of flanges. Easy to setup and operate; the feed is variably adjustable.


Clamping Diameter: 720 mm – 1900 mm

Machining Diameter: 735 mm – 2050 mm

Drive Options: Servo-Electric, Pneumatic or Hydraulic

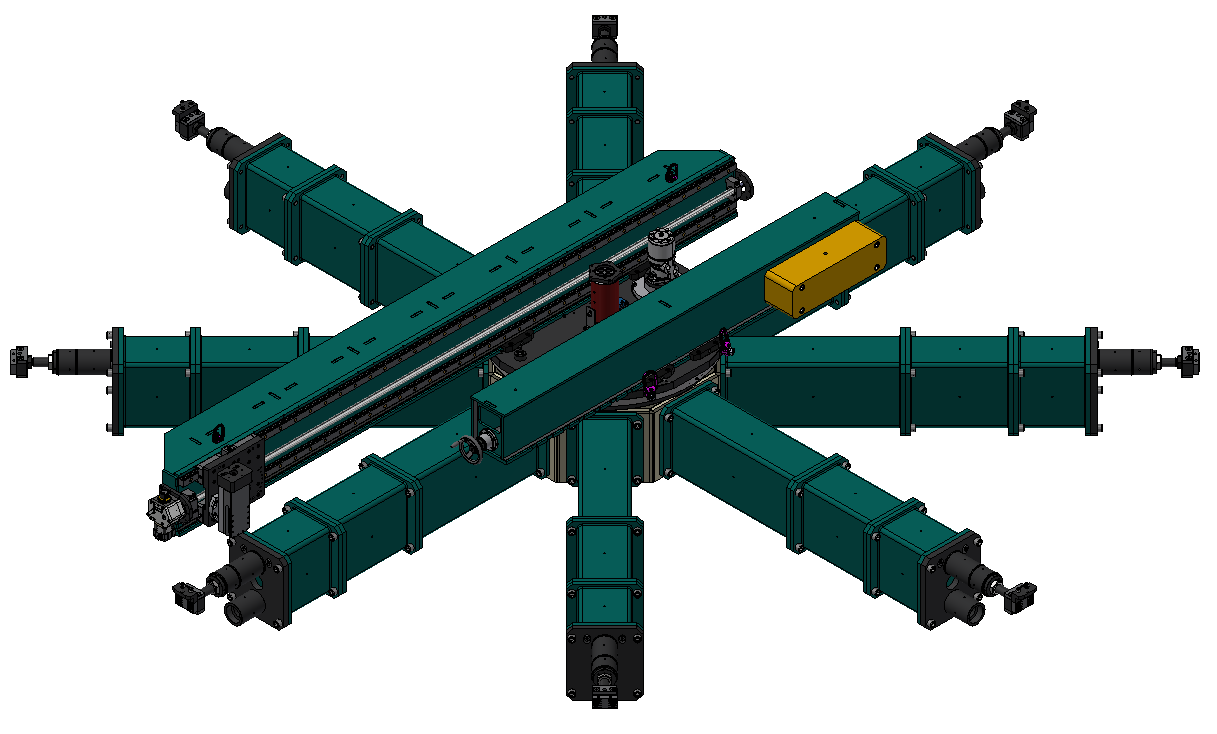

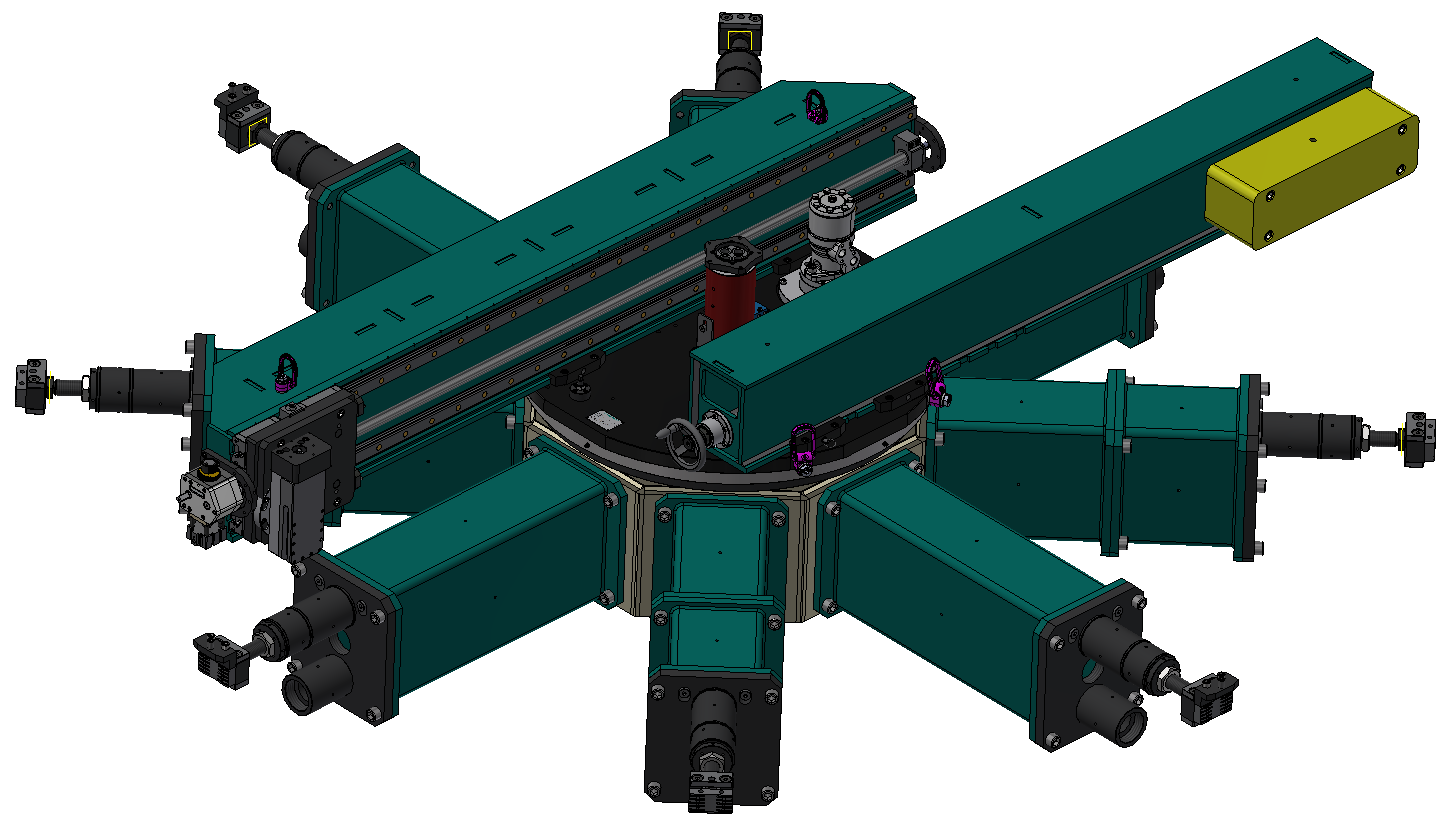

TFD3000

Robust and versatile this machine can perform both facing and milling of flanges. Easy to setup and operate; the feed rate is variably adjustable. The universal feed box can be used for axial and radial movement. Another advantage of the machine is the ability for the turning arm to be used as 2-Axis milling machine.

Clamping Diameter: 1100 mm – 2890 mm

Machining Diameter: 1150 mm – 3100 mm

Drive Options: Servo-Electric, Pneumatic or Hydraulic

TFD3000 5m

Robust and versatile this machine can perform both facing and milling of flanges. Easy to setup and operate; the feed rate is variably adjustable. The universal feed box can be used for axial and radial movement. Another advantage of the machine is the ability for the turning arm to be used as 2-Axis milling machine.

Clamping Diameter: 1100 mm – 4500 mm

Machining Diameter: 1150 mm – 5050mm

Drive Options: Servo-Electric, Pneumatic or Hydraulic
